Mail Configuration¶

This document describes how to configure email settings in Poweradmin.

Overview¶

Poweradmin supports sending emails for various purposes:

User registration confirmations
Password reset requests
DNS zone changes notifications
System alerts

Requirements¶

Any email that contains a link also needs interface.application_url. Links are built from that setting alone, because a request header cannot be trusted for a URL that is sent to someone else. From 4.2.6, 4.3.5, 4.4.1 and 4.5.0, with it unset:

Password reset mail is not sent at all. The request is accepted and the interface still reports success, but nothing is delivered and only a line is written to the server log. From the same releases, superusers see a warning on the dashboard when password reset is enabled and application_url is empty.
Username recovery and zone access notifications are still sent, but without their link.

See Security Policies for the reset-specific detail and Username Recovery.

Configuration Options¶

The mail settings are configured in the config/settings.php file under the mail section:

enabled: Enable email functionality. Default: true
from: Default "from" email address. Default: poweradmin@example.com
from_name: Default "from" name. Default: empty
return_path: Default "Return-Path" address for bounce handling. Default: poweradmin@example.com
transport: Transport method. Options: 'smtp', 'sendmail', 'php', 'logger' (writes messages to the log instead of sending, see Email Debug Logging). Default: php

SMTP Settings¶

SMTP settings live as flat keys under mail (they are not nested in an smtp subarray):

host: SMTP server hostname. Default: smtp.example.com
port: SMTP server port. Default: 587
username: SMTP authentication username. Default: empty
password: SMTP authentication password. Default: empty
encryption: Encryption method. Options: 'tls', 'ssl', empty. Default: tls
auth: Whether SMTP requires authentication. Default: false

Sendmail Settings¶

sendmail_path: Path to sendmail binary, including arguments. Default: /usr/sbin/sendmail -t -i

Warning: Keep the -t flag (it makes sendmail read recipients from the message headers). -bs puts sendmail into SMTP mode, where a piped message is silently dropped and no mail is delivered.

Example Configuration¶

return [
    'mail' => [
        'enabled' => true,
        'from' => 'dns@example.com',
        'from_name' => 'DNS Administrator',
        'return_path' => 'dns@example.com',
        'transport' => 'smtp',
        // SMTP settings (flat, not nested under 'smtp')
        'host' => 'smtp.example.com',
        'port' => 587,
        'username' => 'smtp_user',
        'password' => 'smtp_password',
        'encryption' => 'tls',  // 'tls', 'ssl', or ''
        'auth' => true,
    ],
];

Email Template Previews¶

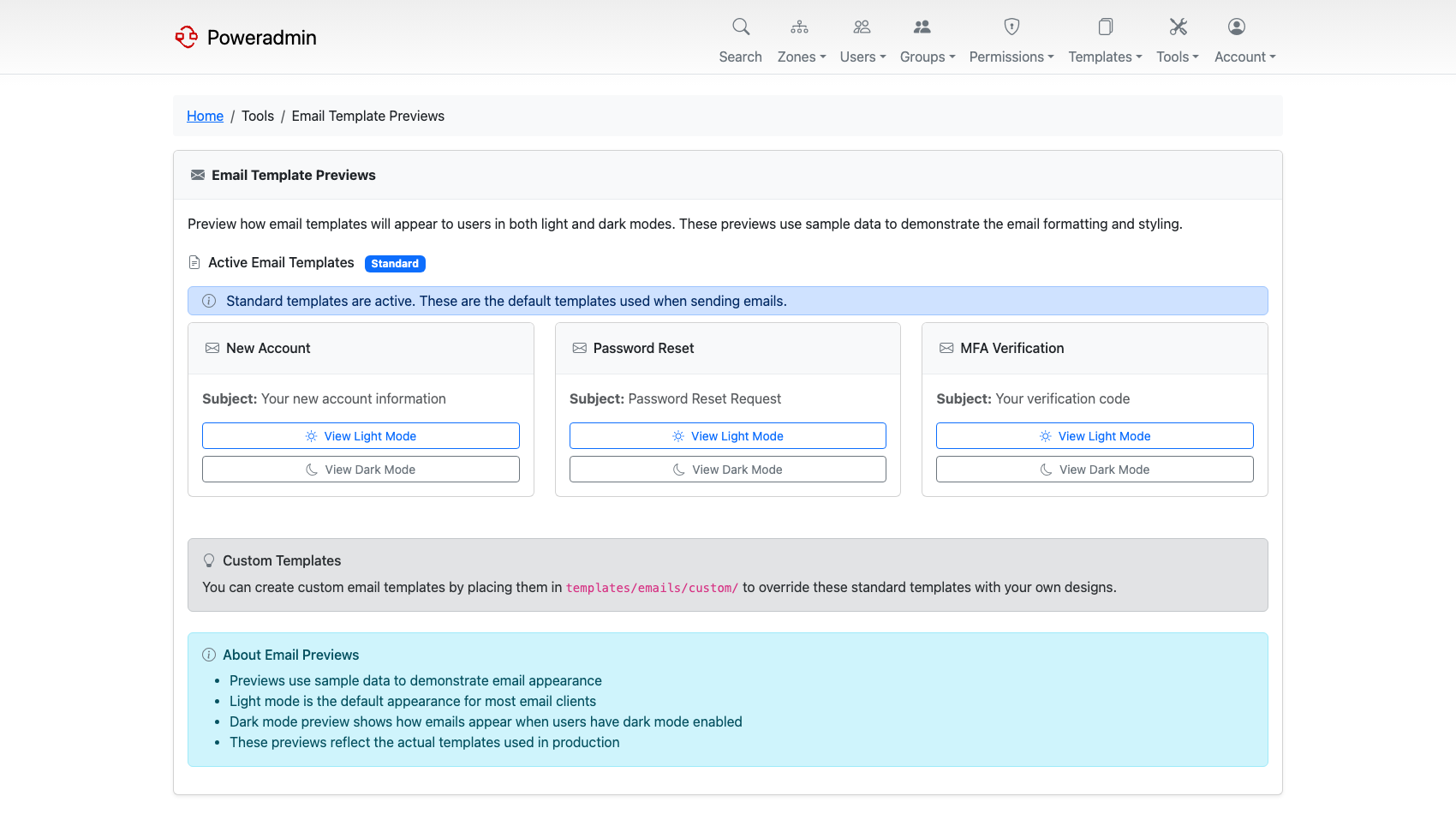

Poweradmin can render its outgoing mail templates in the browser so you can check wording and styling without sending anything. The page is at /tools/email-previews, under Tools.

Enable the module in config/settings.php:

'modules' => [
    'email_previews' => [
        'enabled' => true,
    ],
],

Note: The page is restricted to administrators (user_is_ueberuser) whatever restrict_to_admin is set to. That setting only controls whether the navigation entry is offered; the controller enforces administrator access regardless.

Three templates can be previewed - New Account, Password Reset and MFA Verification - each rendered with fixed sample data rather than real user details. Every preview opens standalone and can be viewed in light or dark mode; dark mode is produced by applying a CSS override to the same template, not from a separate file.

If you have added a custom template under templates/emails/custom/, the preview shows your version instead of the shipped one and marks it as custom, which makes this a quick way to confirm a custom template is actually being picked up.

Previews are HTML only. There is no plain-text preview, even though mail is also sent with a plain-text body.

Troubleshooting¶

Email Debug Logging¶

To troubleshoot email delivery without touching SMTP, set transport to logger. Outgoing messages are then written to the PHP error log and Poweradmin's application log instead of being sent over the network - useful for inspecting password reset content during development:

'mail' => [
    'transport' => 'logger',
],

For server-side errors during real SMTP delivery, set logging.type to native and raise logging.level (see Logging), then check your web server error log or PHP error log for output from MailService. logging.type defaults to null, which discards diagnostic output no matter what the level is set to.

TLS/STARTTLS Issues (Fixed in v4.1.0)¶

Problem: Email sending fails with TLS/STARTTLS errors in versions prior to v4.1.0.

Solution: Upgrade to v4.1.0 or later, which includes proper TLS/STARTTLS connection handling.

If you're experiencing issues with TLS encryption:

Verify encryption setting:

'encryption' => 'tls',  // For STARTTLS on port 587
// or
'encryption' => 'ssl',  // For SMTPS on port 465
// or
'encryption' => null,   // For unencrypted connections (not recommended)

Common port and encryption combinations:
Port 587 with 'encryption' => 'tls' (STARTTLS) - Most common
Port 465 with 'encryption' => 'ssl' (SMTPS) - Older systems
Port 25 with 'encryption' => null - Not recommended

Email Rejection Due to Long Lines (Fixed in v4.0.3)¶

Problem: Some SMTP servers reject emails with lines longer than 998 characters (RFC 5322 limit).

Solution: Upgrade to v4.0.3 or later, which implements proper line wrapping for email content.

This particularly affects:

Long DKIM signatures
Extensive HTML email templates
Large text blocks in password reset emails

Common SMTP Authentication Issues¶

Problem: SMTP authentication fails even with correct credentials.

Troubleshooting steps:

Verify credentials: Double-check username and password
Test SMTP connectivity:
```
telnet smtp.example.com 587
```
Check firewall rules: Ensure outbound SMTP ports are open
Review server logs: Set logging.type to native and raise logging.level to debug (see Logging) for detailed MailService output
Try alternative ports: Test port 465 (SSL) or 25 if 587 fails

Email Not Being Delivered¶

Common causes:

Incorrect "from" address: Some SMTP servers require matching authentication username
SPF/DKIM issues: Ensure your server's IP is authorized to send from the domain
Blacklisted IP: Check if your server's IP is on spam blacklists
Rate limiting: SMTP server may be throttling connections

Debugging steps:

Set logging.type to native, raise logging.level to debug, and check the application log (see Logging)
Check mail server logs
Verify email appears in sent items (if using external SMTP)
Test with a simple mail client using same credentials

Version History¶

v4.1.0¶

Fixed: TLS/STARTTLS connection handling (issue #861)
- Properly handles different encryption modes
- Resolves connection failures with certain SMTP servers

v4.0.3¶

Added: Comprehensive debug and operational logging
- Detailed SMTP transaction logging
- Authentication process visibility
- Error message improvements
Fixed: Email rejection due to long lines (issue #798)
- Implements RFC 5322 compliant line wrapping
- Prevents SMTP server rejections

v4.0.2¶

Fixed: Invalid SMTP headers causing server rejections (issue #774)
- Removed non-standard headers
- Improved RFC compliance
Fixed: SMTP authentication and response parsing issues
- Better error handling
- More reliable authentication

v4.0.0¶

New Twig-based email template system
Support for custom email templates
Dark mode email templates
Plain text body support
Template preview functionality
Multiple transport options (SMTP, sendmail, PHP mail)

Security Policies - Password reset and MFA email settings
User Agreements - Agreement acceptance notifications
